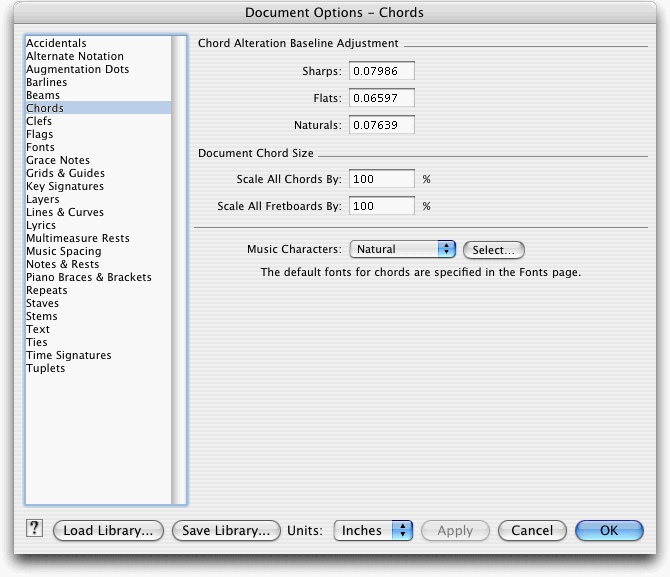

Document Options-Chords dialog box

$image\DocOptionsChords.gif$

How to get there

Choose Document > Document Options and select Chords.

Here, you can specify the font of chord elements, adjust their baselines and change their font characters.

Chord Alteration Baseline Adjustment: Sharps • Flats • Naturals. Use these controls to set baseline values individually for sharp signs, flat signs and naturals placed on chord suffixes. To set the vertical distance of sharps, flats and naturals from the baseline, enter a value in each text box. Double sharps will use the offset for sharps and double flats will use the offset for flats.
Scale All Chords By • Scale All Fretboards By. Use these values to specify the global chord symbol and fretboard scaling. (Note that to retain consistent scaling of chords with suffixes, use the Chords Symbol option in Document Options-Fonts.) The scaling percentage specified here is in addition to any staff or page resizing applied with the Resize tool. (Chord symbols and fretboards are no longer note-attached, and therefore do not adjust according to the note size). To change the scaling of specific chord symbols or fretboards by region, use the Change > Chords command under the Utilities menu. See Change Chord Assignments dialog box.
Music Characters; Select. Here, specify font characters to use for accidentals in chords. Select an item from the drop-down list, then click Select to choose the character for that item. The available characters will depend on the default font for chord alterations specified in Font options.
