MIDI Setup

How to get there

Choose MIDI Setup from the MIDI menu.

What it does

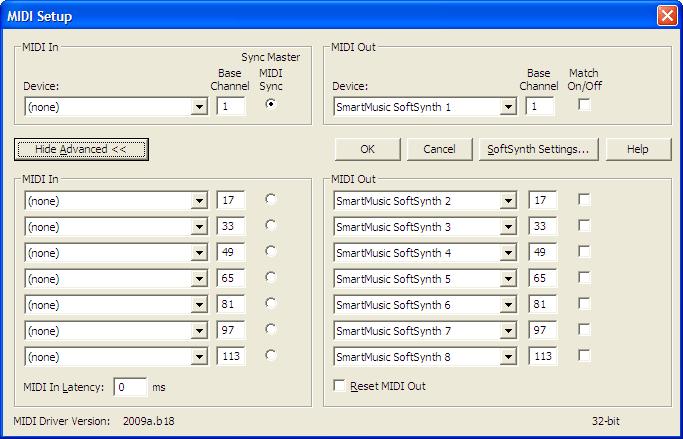

In the MIDI Setup dialog box you can edit a number of settings pertaining to your MIDI interface setup.

Tip: To test if your MIDI output device supports matching note on/off messages, open a new default document. Enter a whole note middle C in the first measure in layer 1. Switch to layer 2, and then in the same measure, enter a half note on middle C and then a half note on D. Play the measure back. If the whole note C gets cut off with the half note C (you can’t hear the C against the D), the MIDI device does not support matching, but PrintMusic thinks it does - uncheck Match On/Off. If the whole note C continues to play over the barline, the MIDI device supports matching, but PrintMusic thinks it doesn’t - check Match On/Off. If you can hear the C against the D, and they both cut off at the same time, PrintMusic is setup correctly.

Note: SoftSynth requires DirectX 5.0 or higher. DirectX is Windows® technology that enables higher performance in graphics and sound. DirectX 5.0, or a newer DirectX version is included with Windows 98 and newer Windows versions. You can download DirectX updates from Microsoft’s Web site free of charge.

Note Also: If you experience erratic playback while using SoftSynth (such as incorrect rhythms), and are using a machine with a dual processors or hyper threading capability, set PrintMusic to run on a single CPU. To do this, press Ctrl-Alt-Delete and then select Task Manager. Choose the Processes tab, right click “Finale.exe” and choose Set Affinity. Then, ensure only one CPU is selected. Click OK, close out of the Task Manager, and the erratic playback problem should be resolved.

PrintMusic channels

MIDI channels on the connected instrument

1-16

Device One 1-16

17-32

Device Two 1-16

33-48

Device Three 1-16

49-64

Device Four 1-16

65-80

Device Five 1-16

81-96

Device Six 1-16

97-112

Device Seven 1-16

113-128

Device Eight 1-16
