Enclosure Designer dialog box

How to get there

There are three ways to access the Enclosure Designer, depending on whether you want to edit an enclosure on an Expression, Repeat marking or Measure number:

What it does

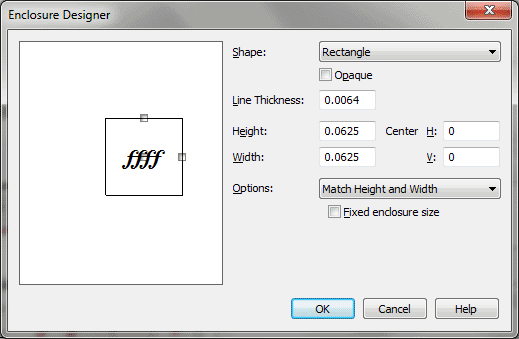

This dialog box lets you enclose the expression mark (such as a rehearsal letter) or text repeat (such as "To Coda") in a box of any size, geometric shape, or line thickness. If you encounter it using the Measure tool, it lets you modify, add, or remove the enclosure for the measure number you clicked.

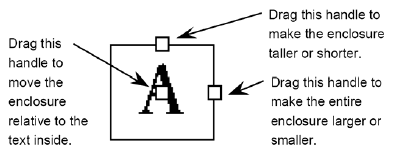

Note. that the display shows three square handles. By dragging these handles, you can change the size, shape, and positioning of the enclosure.

Tip. Choose Match Height and Width from the Options drop-down list for Rehearsal letters if you want the shape to be the same size throughout the score.


See Measure Number dialog box for details.
