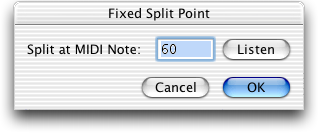

Fixed
Split Point
How to get there
Click the HyperScribe tool
. Choose Split into Two Staves from the Record submenu
of the HyperScribe Menu.
What it does
When you’re playing a two-handed keyboard
performance into SongWriter, it needs some instructions for splitting
the incoming music onto separate staves. This option lets you designate
a note on your MIDI device as the “split point” pitch. All notes on or
above this pitch are transcribed onto the upper staff, and all notes below
it are assigned to the lower staff.
- Split
at MIDI Note:. In this text box, you identify a MIDI Note below
which all music should be split onto the lower (left-hand) staff. This
note is determined by the standard MIDI key numbering system, where keys
are numbered sequentially from left to right, and middle C is 60. Instead
of figuring out the number to enter here, you may find it easier to use
the Listen button (see below).
- Listen.
When you click this button, SongWriter goes into “listen” mode,
waiting for a MIDI signal. (A message to this effect appears on the screen.)
Simply play the desired key on your keyboard; SongWriter enters the appropriate
key number in the text box.
- OK
· Cancel. Click OK (or press return) to confirm the split point and
return to the score. Your transcription will now be correctly split onto
two staves. Click Cancel to return to the score without specifying a split
point.
