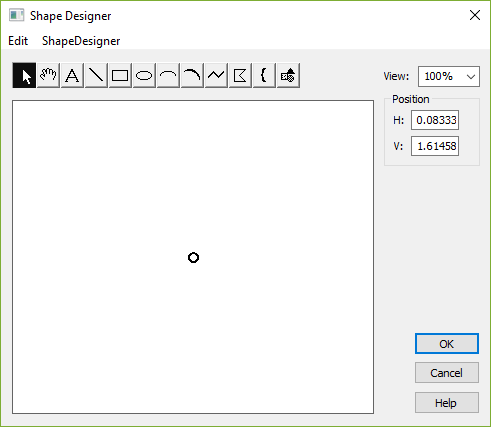

Shape Designer dialog box

How to get there

  1. Choose the Expression tool icon and double-click a note or measure. The Expression Selection dialog box appears.
  2. For a new expression, click Create [Category Name]. Select Shape and click Create. For an existing shape expression, select it from the Expression Selection dialog box, click Edit to open the Expression Designer dialog box, and click Edit. The Shape Designer dialog box appears.

You can also enter the Shape Designer dialog box when you’re choosing:

  • a multimeasure rest
  • a custom stem shape (Special Tools Tool)
  • a Custom Frame for the Text tool
  • an Executable Shape as part of the playback definition for an expression
  • custom barline
  • custom arrowheads for Smart Shapes
  • articulation shapes

What it does

The Shape Designer is Finale’s built-in graphics designer. You might create, for example, a harp pedaling diagram, or a custom barline. You can also design rectangles to use as frames when you’re creating Closedtext blocksText created and edited in the score that is enclosed in a "Standard" rectangular frame for which a border can be displayed, or a "Custom" frame that you create. They can be placed anywhere in the score, and displayed on a single page or a range of pages., block rests to serve as multimeasure rests in extracted parts, and special shapes for use as custom stems.

There are a number of drawing tools at the top of the screen; to create a shape, you click the tool you want to use, then click or drag in the blank display area. Each time you do so, you create a separate, movable, resizable, reshapable object. Objects may be grouped together, sent behind or in front of other objects, copied or pasted.

Using the Shape Designer menu, you can display a background grid, change the shading and line thickness of objects, and specify Font for text objects; see Shape Designer menu.

To reshape an object, click it using the Selection tool, so that its handles appear. Drag these handles to resize the object—or, if it’s a curve, slur, bracket, multiline or polygon shape, double-click to reveal a number of individually-adjustable control point handles. For more precision, you can also select a single control point handle and reposition it by typing numbers into the H: and V: boxes. These numbers are like plane geometry coordinates (horizontal and vertical, respectively). (After entering a number, press tab to see the change reflected in the display.)

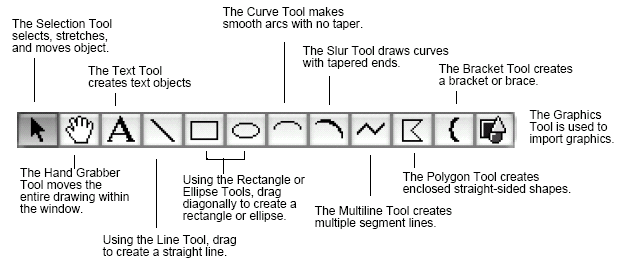

At the top of the window are the drawing tools.

  • Selection Tool. Use this tool for selecting, re-shaping, and moving objects. Click an existing object to make its handles appear; SHIFT-click to select multiple objects. Drag a handle to re-shape the object, drag the object to move it, or press DELETE to remove it. Double-click a polygon, multiline shape, curve, or bracket to display its control handles.
  • Hand Grabber Tool. This tool works just like the Hand Grabber Tool in Finale’s main tool palette; it lets you adjust the drawing’s position in the window. Drag in the drawing area to shift the entire drawing in any direction.
  • Text Tool. Use this tool to create and edit text blocks, or text objects. Click in the drawing area, and then type. You change the Font using the Select Font command in the Shape Designer menu—either by first clicking in the text block just before the text you want to change, or by first selecting the entire text block with the Selection tool. Click an existing text block to position it. Click the mouse to exit the text block. Text doesn’t wrap automatically within a text object; as you type, therefore, you need to press enter to create a new line within a text block.
  • Line Tool. Use this tool to draw single straight lines, anchored at the point of your first click, by dragging in the drawing area. Describe the line’s thickness, shading, and dashed quality using the Shape Designer menu, before creating it or when it’s selected. Press SHIFT while dragging to create a perfect horizontal, vertical, or 45-degree line.
  • Rectangle Tool. To draw a square or rectangle anchored at the point of your first click, drag diagonally in the drawing area. Press SHIFT while dragging to create a perfect square. Describe the rectangle’s thickness, shading, and dashed quality using the Shape Designer menu, before creating it or when it’s selected.
  • Ellipse Tool. Drag diagonally in the drawing area to draw an oval, anchored at the point of your first click. Press SHIFT while dragging to create a perfect circle. Describe its thickness, and shading using the Shape Designer menu, before creating it or when it’s selected.
  • Curve Tool. Drag in a straight line to create a shallow, non-tapered (reshapable) curve, anchored at the point of your first click, that bows away from the imaginary line. You determine the direction of the arc by the direction you drag: drag to the right to produce an upward arc, drag upward to produce a leftward arc, and so on. Describe the curve’s thickness and dashed quality using the Shape Designer menu, before creating it or when it’s selected. Using the Selection tool, click a curve to see its bounding handles, which you can drag to resize the curve; double-click a bounding handle to display its control points, which you can use to reshape the arc.
  • Slur Tool. Drag in a straight line to create a shallow solid or dashed (reshapable) tapered slur, anchored at the point of your first click. As with the Curve Tool, you determine the direction of the arc by the direction you drag: drag to the right to produce an upward arc, drag upward to produce a leftward arc, and so on. The Shape Designer menu’s line settings don’t affect a slur. Using the Selection tool, click a slur to see its bounding handles, which you can drag to resize the curve; drag-select a bounding handle (by, for example, clicking to the upper left of the slur and dragging to the lower right) to display its control points, which you can use to reshape the arc.
  • Multiline Tool.This tool creates shapes with more than one line segment. Drag to create the first line segment, and then click to specify each additional point (an additional line segment is drawn with each click). Describe the shape’s thickness and dashed quality using the Shape Designer menu, before creating it or when it’s selected. Using the Selection tool, click a multiline shape to see its bounding handles, which you can drag to resize the object; double-click a bounding handle to display its control points, which you can use to reshape the individual segments.
  • Polygon Tool. This tool lets you create fully-enclosed shapes composed of multiple line segments. Drag to create the first line segment, and then click to specify the next point. An additional line segment is drawn with each additional click. Double-click to close the shape (by drawing a final line back to the starting point). Describe the shape’s thickness, shading, and dashed quality using the Shape Designer menu, before creating it or when it’s selected. Using the Selection tool, click a polygon to see its bounding handles, which you can drag to resize the object; double-click a bounding handle to display its control points, which you can use to reshape the sides of the shape.
  • Bracket Tool. Select a bracket style by choosing Shape Designer > Bracket Style. To draw the bracket, click once in the drawing area; a full-fledged bracket appears. To resize it, click the Selection tool; click the bracket and drag one of its bounding handles. Drag-select (by, for example, clicking to the upper left of the bracket and dragging to the lower right) to display its control point handles, which you can drag to reshape a curly piano brace.
  • Graphics Tool. This tool allows you to place and export graphics using Finale’s Graphics tool. (See Graphics tool.)
  • View. This dropdown menu lets you select a percentage of actual size at which you want your shape displayed. Use it if you want to "zoom in" on a very small shape, or "zoom out" to see all of a very large shape. You can also specify a degree of magnification not listed in the dropdown menu by typing a number directly into the text box. Press tab after typing the number in the text box to display the change immediately.
  • Positioning: H: • V:. These text boxes display the horizontal and vertical coordinates, respectively, of your cursor as you move it around the screen. If you click a handle of an object, these boxes show the handle’s coordinates—which you can edit, and then when you press enter, tab, or click outside the number box, the handle will jump to the new coordinates. A positive number in the H: box indicates a position to the right of the origin (the small white circle that anchors your shape), and a negative number indicates a position to the left. A positive number in the V: box indicates a position above the origin, and a negative number indicates a position below it.
  • OK • Cancel. When you’re finished creating the shape, click OK to return to the previous dialog box; your shape is now ready for use. Click Cancel to return to the previous dialog box without creating or editing a shape.
