Chord Splitting Plug-in
How to get there
- Select a chord in one staff with the Selection Tool
. The chord must contain at least
two notes and be in layer 1.
- Choose
> Scoring and
Arranging > Composer’s Assistant > Chord Splitting.
What it does
The Chord Splitting plug-in creates a new
staff or staves containing subsets of the original chord, each a whole
note in duration. These subsets are based on harmonic targets that were
implicitly contained inside the original chord. This plug-in was designed
to be a composition/orchestration utility capable of automatically generating
several simplified subsets of a more complex chord.

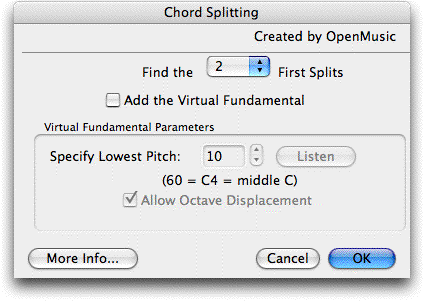

- Find the __ first splits. The Chord
Splitting plug-in has the capacity to split the chord several times at
once. The results will display the split containing the smallest number
of subsets first, and then a new staff for each succeeding subset.
- Add
the Virtual Fundamental. Check this option to add a staff containing
the virtual fundamental beneath each staff of subsets. For a definition
of the Virtual Fundamental, see Virtual
Fundamental Generator plug-in.
- Virtual
Fundamental Parameters. Use this section to modify the parameters
of the virtual fundamental. This functions the same as the Virtual
Fundamental Generator plug-in.
- More
Info · Cancel · OK. Click More Info for a reminder of what input
this plug-in requires and a brief summary of what the plug-in does. Click
Cancel to dismiss the dialog box without making any changes, or Click
OK to make the selected changes.
